Brand Name : Zoll
Model Number : E Series
MOQ : 1 Piece
Price : USD
Payment Terms : T/T, Western Union, Paypal
Delivery Time : 3-5 working days
Packaging Details : Standard Export Packing
Brand : Zoll
Product Category : Defibrillation
Product Type : Spare Parts
Product Name : Power Supply Module
Machine Application : E Series Defibrillator
Condition : Used
Warranty : 90 Days
In Stock : Yes
Delivery Date : 3 - 5 Working Days
Payment Method : Western Union, Bank T/T, Paypal
Transpotation : DHL, FedEx, UPS, TNT, EMS, By Air, etc.
Power Supply Module for Zoll E Series Defibrillator
Zoll E Series Defibrillator Power Supply Module Used With Good Condition Medical Spare Parts
► Brief Description
Zoll E Series Defibrillator Power Supply Module Used - It is one of the most important parts on the Zoll E Series Defibrillator. This power supply module can convert the DC power from the removable battery or AC/DC battery charger module to the voltage required by the E Series device hardware. And the power supply circuit can convert the original battery or charger PWBA output voltage +8.5 VDC to +16 VDC to the voltage shown in the table below, including load and line regulation.
This Zoll E Series Defibrillator Power Supply Module is used but the performance is complete and meets your use requirements. It has been carefully tested by engineers before selling to ensure its usability. And it has a 90-day warranty period. If there are any quality problems, you can contact us for replacement or repair during the warranty period. If you have any needs, please contact me freely.
► Specification
Brand | Zoll |
Product Category | Defibrillation |
Product Type | Spare Parts |
Product Name | Power Supply Module |
Machine Application | E Series Defibrillator |
Condition | Used |
Performance | Good |
Warranty | 90 Days |
Delivery Date | 3 - 5 Working Days |
Package | Carton |
Payment Method | Western Union, Bank T/T, Paypal |
Transpotation | DHL, FedEx, UPS, TNT, EMS, By Air, etc. |
In Stock | Yes |
Price | Accept Negotiation |
► More Details
Power Supply Test
Tools Required:
• 1 red micro alligator to micro alligator test lead.
• 1 black micro alligator to micro alligator test lead.
• DC power supply (15 amp minimum).
• 0.1 ohm 1% resistor (¼W or greater).
• 1000 ohm 1% resistor (¼W or greater).
• Fluke 75 Multimeter or equivalent.
Test Setup:
1. Make sure the unit and power are off.
2. Connect one end of the black wire to the “-” terminal in the battery well.
3. Connect the other end of the black wire to the “-” terminal of the power supply.
4. Connect the red wire to the “+” terminal socket of the battery well. Use the center pin with the plastic protective cover around it. Connect the other end of the red wire to the “+” terminal of the power supply.
5. Set the power supply voltage to 7V.

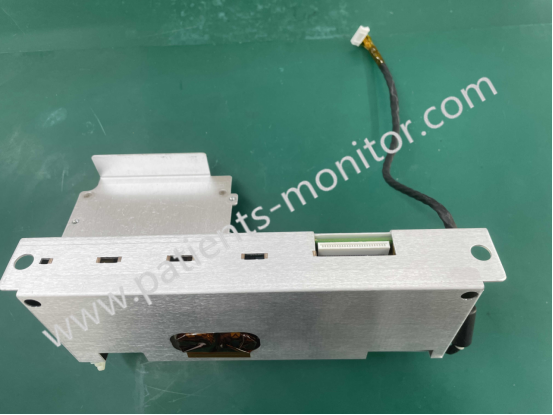

► Detailed Photos
Thanks for your interest in Zoll E Series Defibrillator Power Supply Module Used With Good Condition Medical Spare Parts, please feel free to contact me. Thank you for your time and wish you have a happy life.
![]() |
Zoll E Series Defibrillator Power Supply Module With Good Condition Medical Spare Parts Images |
