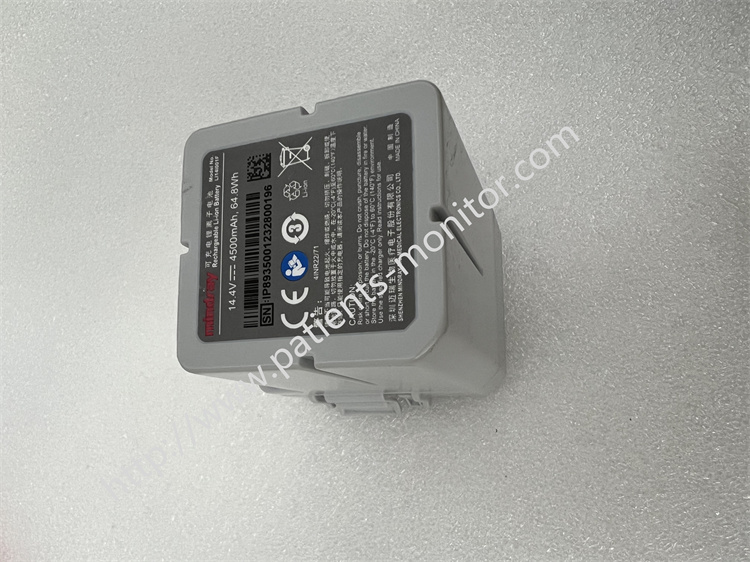

Mindray Rechargeable Li-ion Battery LI14I001F

14.4V 4500mAh 64.8Wh for Mindray BeneHeart D30 Defibrillator

►Quick Detail:

This product is Mindray Rechargeable Li-ion Battery for defibrillation D30 monitor. Most defibrillation monitors are used for both AC and DC. When AC power is used, the internal circuit automatically converts to AC/DC function and charges the battery at the same time. When there is no AC power source or when going out for emergency treatment, the battery can be used for power supply. Different battery capacities, different monitoring times or times of defibrillation are clearly stated in the general user manual.

Phenomenon: Main functions become unresponsive after powering on (for example: the monitor screen is black, defibrillation is not possible, and recording is not possible).

Judgment and repair: The above phenomena are mostly low-voltage power supply problems. If it still works with batteries, it's usually an AC/DC circuit problem. If you can use AC power but not the battery, the battery may be undercharged or invalid. Some defibrillation monitors can only use batteries, and this battery has a capacity indicator, so the operator can easily judge the battery capacity. Medical staff cannot eliminate problems with the low-voltage power supply itself and can only be repaired by engineering and technical personnel.

►Precautions:

01. Be familiar with the performance and characteristics of the instrument

02. Be familiar with the functions of the keys on the operation panel. For example: the keys on the panel have the so-called "Softkey" (custom function key) function. Its current function is prompted at the corresponding position on the screen. Press the key in different states. keys to complete different operations.

03. Be familiar with the meaning of the instrument indicator light status, text prompts, and sound prompts, especially the countermeasures after an alarm prompt occurs. Such as AC power supply indication, internal battery charging status indication, internal battery low energy prompt (Lowerbattery), etc.
Only by being familiar with the characteristics and functions of the defibrillator can we use it appropriately when the patient's heart is abnormal and improve the success rate of rescue.

04. Quick check of the main functions of the instrument
When it is necessary to quickly determine whether the main functions of the instrument are normal, the following methods can be used.
Check the monitoring function: You can select the lead in Paddles (paddle-shaped electrode) and touch the sternal electrode plate and apical electrode plate with both hands respectively. If the ECG waveform is displayed on the screen, it means that the monitoring function is basically normal.
Check the defibrillation function: Generally, soap can be used as a medium to observe the discharge spark. The specific operation is: remove the handle from the machine, use a piece of soap to sandwich the two electrode plates, and then perform "defibrillation charging". After charging is completed, press the discharge button at the same time. At this time, discharge sparks can be seen at the electrode plate holding the soap. The size of the spark is related to the amount of energy chosen. When discharging, be careful not to allow the human body to touch the electrode plates, nor to directly short-circuit the two electrode plates. The above methods are not a substitute for rigorous testing. But if it fails even the above checks, the instrument must be repaired.

►Key features:

► Company situation:

The company has been professionally operating various brands of original medical monitoring instruments since 2015. The company has many professional senior engineers and has sufficient ability to undertake various medical equipment maintenance work. Covering motherboards, sensors, probes, modules, connectors, shells, etc. for various medical monitoring equipment.

►About delivery:

We default to express delivery by DHL,Fedex,etc.We will contact you as soon as possible when sending express delivery. If you have any questions after receiving the express delivery, please feel free to contact us at any time.

Mindray Rechargeable Li-ion Battery

4500mAh Rechargeable Li-ion Battery

14.4V Rechargeable Li-ion Battery

Mindray Rechargeable Li-ion Battery LI14I001F 14.4V 4500mAh 64.8Wh for Mindray BeneHeart D30 Defibrillator Images
