Med-tronic Lifepak20 LP20 Defibrillator Battery Cover Battery Door 3200628
Hospital Medical Equipment Med-tronic Lifepak20 LP20 Defibrillator Battery Cover Battery Door 3200628 in good condition
► Brief Introduction
When operating on battery power, the large current draw required for defibrillator changing may cause the defibrillator to reach shutdown voltage levels with no low battery warning. If the defibrillator shuts down without warning, or if a LOW BATTERY: CONNECT TO AC POWER message appears on the monitor screen, immediately connect the AC power cord to an outlet.
► Specification
| Temperature, Operating | 5° to 45°C (41° to 113°F) |
| Temperature, Non-Operating | -20° to 60°C (-4° to 140°F) except therapy electrodes |
| Relative Humidity, Operating | 5 to 95%, non-condensing |
| Atmospheric Pressure, Operating | Ambient to 522 mmHg (0 to 3048 meters) (0 to 10,000 ft) |
| Shock (drop) | 1 drop on each side from 45.7 cm (18 in.) onto a steel surface |

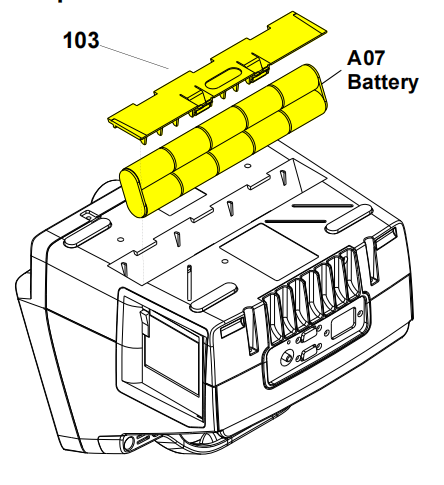

► Battery Replacement
1. Disconnect the device from ac power.
2. Place the device top down.
3. Insert two, small, flat-bladed screwdrivers into the door taps and pinch the tabs to remove the battery door (103).
4. Remove and disconnect the A07 Battery.
► Install the A07 Battery:
1. Place the device top down.
2. Connect the W08 Battery Cable to the A07 Battery.
3. Insert the A07 Battery into the battery compartment.
Note: Install the A07 Battery in the compartment with the wire harness facing toward the front of the device.
4. Close the battery door (103).
5. Complete the LIFEPAK 20e Device PIP.
► Shipping Issues
Normally, all orders will be shipped and delivered on time within 3-5 business days. Of course, sometimes there are some special cases. For example, on busy days, shipments will be delayed. But don't worry, all orders will eventually be shipped. We will do our best to process the order and ship it as soon as possible.
Please be patient and stay in touch with us. If you need an urgent shipment, please be sure to contact us prior to placing your order. To make the transaction a success, be clear about the essentials and manage the timing of your order based on your business needs.
If you have any questions, such as your order is taking much longer than expected, or you need to know when the order will arrive, feel free to contact us. We will get back to you as soon as possible. Your satisfaction is our greatest wish.
► Qualitative Issues
Our company have one division of labour on the basis of specialization, highly cooperative group, rich technical force of medical machines development. Our expert team provides prompt, dependable solutions for sales and repairs on patient monitor, defibrillator machine, ECG/EKG machine and other accessories or repair parts.
We have been always focusing on producing superior products and providing first-class customer service. What calls for special attention is that there are both brand new and second-hand products for sell. Please remember to carefully distinguish them when placing your orders. Otherwise, it will cause unnecessary troubles. If you have any doubts about the product quality, please don’t hesitate to contact us.
Thank you for your time and interest in Med-tronic Lifepak20 LP20 Defibrillator Battery Cover Battery Door 3200628 . If you want to explore more details please let us know.
